Description

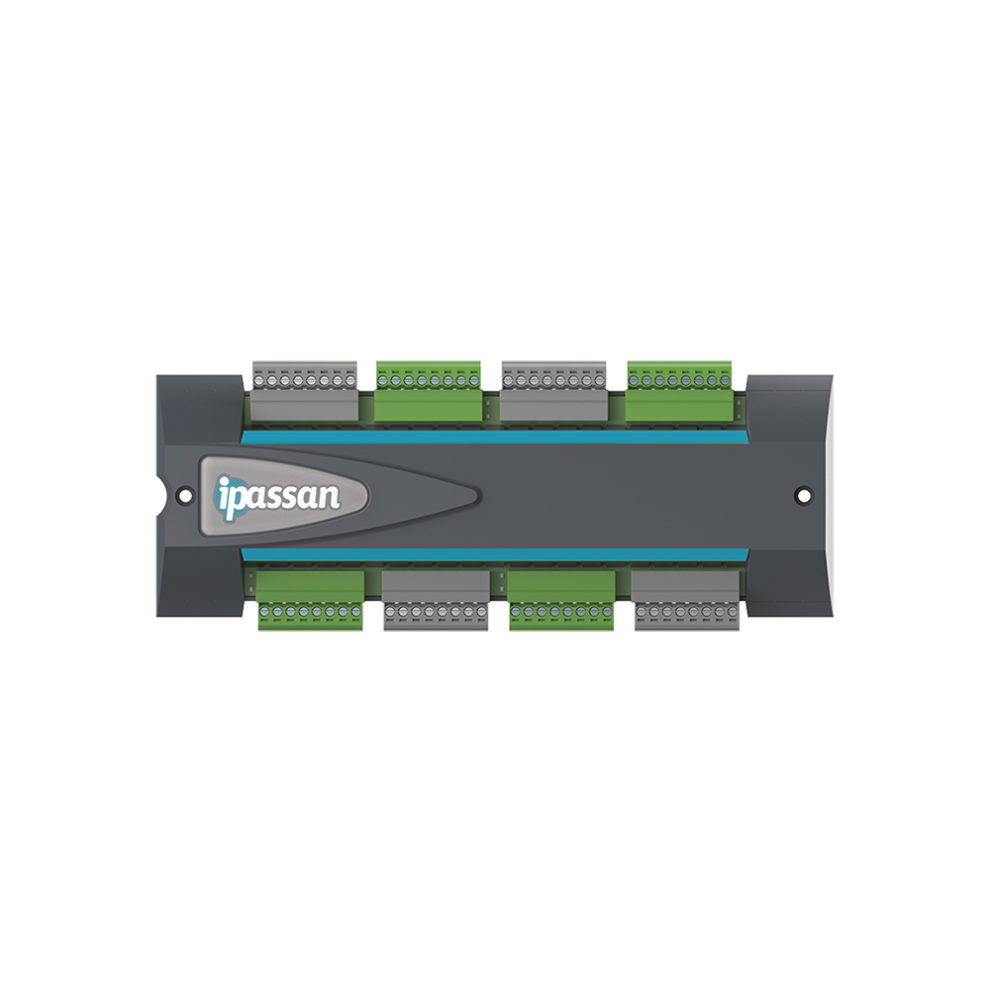

The 4-door iPassan extension option (3, 4, 5 & 6 doors) controls 4 additional iPassan-system doors with Wiegand readers, the FDI-designed advanced, scalable access control solution. The 4-door option increases the capacity of your controller easily by simply connecting the card to a Wiegand base controller.
Key characteristics
- 4 Wiegand reader outputs
- Perfect for increasing the capacity of your base controller
- LED indicators showing the status of all readers and relays
- Integrated door contact management
- Easy to install on the connectors
Power supply
The power is supplied by the base controller itself. No other power supply is required.
Connectivity
The 4-door extension option proposed in iPassan is an easy, cost-effective extension that also offers: 4 additional doors
When a base controller is complemented by the 2-door option, it can reach a total capacity of 6 doors.
Communication
The 4-door option just needs to be clipped on to the Wiegand base controller (Wiegand readers) for it to communicate.
Technical characteristics
Power supply
Operating voltage: the power is supplied by the base controller itself. No other power supply is required.
Communication
Via connectors
Outputs
- Reader outputs: 12VDC 80mA output per reader
- Door relays: 4 48V 2A relays
Inputs
- REX input: Protected by an optocoupler
- Door contact input: EOL management
Temperature
- Operating: -20°C to 50°C
- Storage temperature: -20°C to 70°C
- Humidity : 85 RH max
Size
- Size(L x l x H): 198 mm x 80 mm x 30 mm
- Weight: 205g
