Product
information

Reference

FD-020-172

FD-020-172

Protocols

  • Wiegand

Technologies

  • 125 kHz

Download

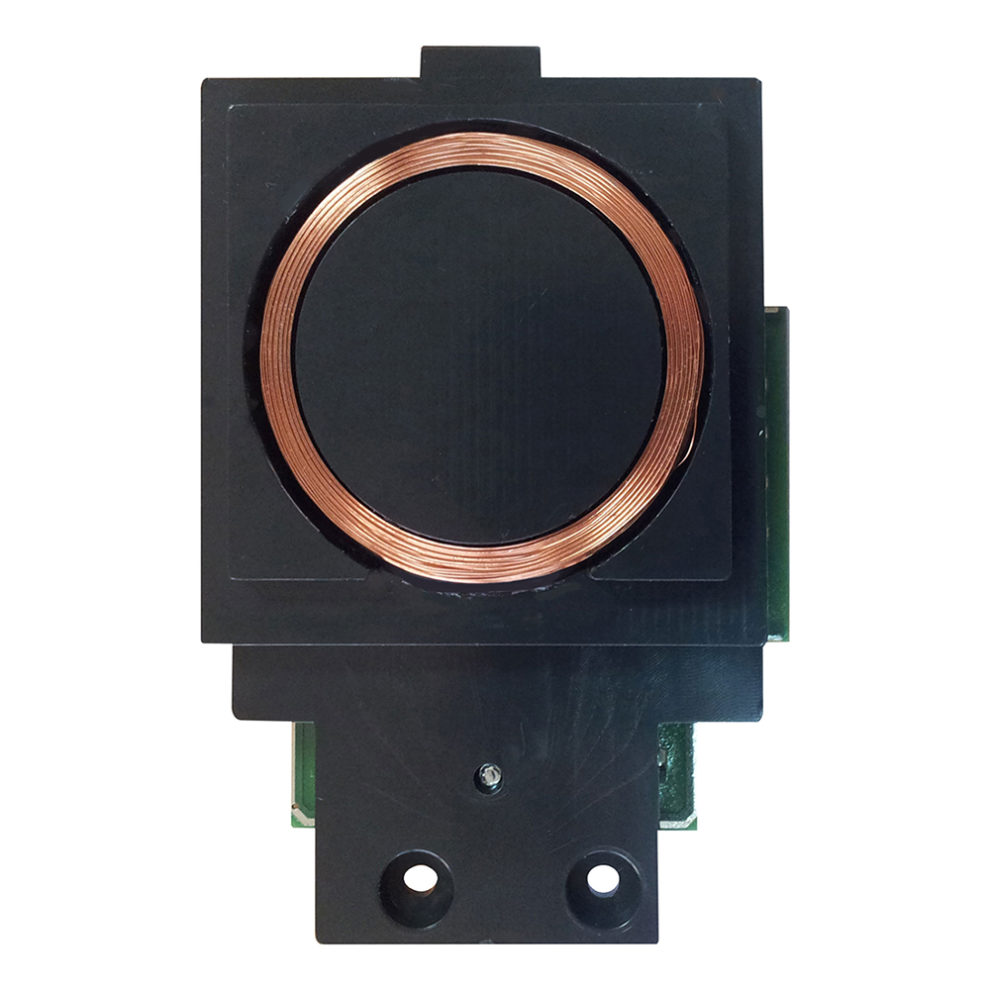

Elekta Steel – Proximity reader

h

Description

Wiegand is a standard protocol.
This 34-bit Wiegand 125 KHz OEM reader is a proximity reader compatible with Wiegand controllers on the market. It is specially designed to integrate an Elekta Steel-referenced Urmet door entry panel.

It connects with 5 wires based on the controller model. Each of the 2 green and red LEDs as well as the buzzer are controlled by an independent wire.

Key characteristics

  • Window size : 45 mm x 45 mm
  • Overall size (l x h x p) : 80 mm x 50 mm x 27 mm (including terminals)
  • Wiring: 5 100 m 6/10th wires
  • Operating temperature: -20°C to +60°C
  • Power supply: 12 Vcc /50 mA (supplied by the controller)
  • Frequency: 125 KHz
  • Read distance: up to 4 cm (based on the key/pass)
  • Protection: diode and transil
