Product
information

Reference

FD-500-229

FD-500-229

Download

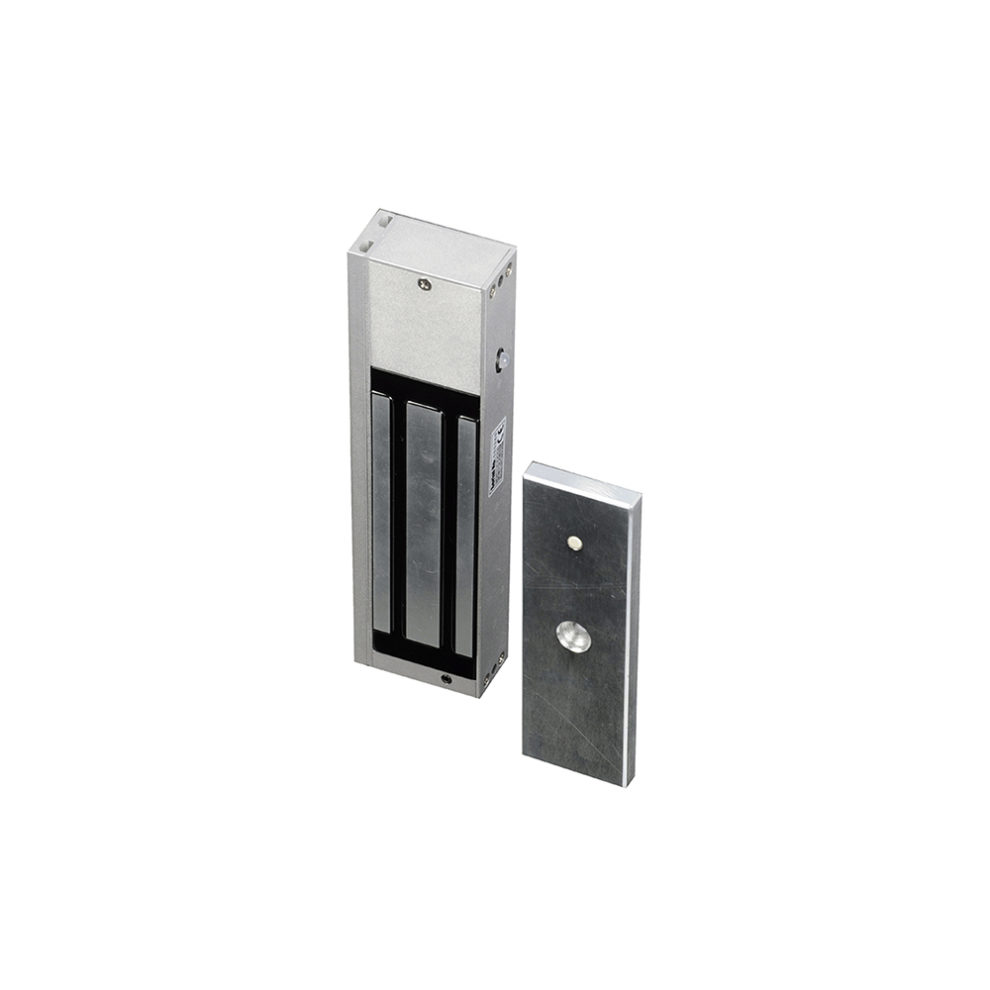

500 kg – LED – Surface-mount electromagnetic lock

DESCRIPTION

The product comprises:

  • 1 electromagnetic lock
  • 1 back plate
  • 1 self-adhesive template for fixing the back plate
  • 1 bag with 8 screws, 2 Allen wrenches, 3 washers, 2 centring pins, 1 plate screw, 1 hexagonal knob.

Optional mounting accessories:

  • L-shaped bracket (Ref. 60-001-069)
  • L- and Z-shaped bracket kit (Ref. 60-001-067)

Key characteristics

  • Lock (L x l x h): 266 mm x 67 mm x 39 mm
  • Back plate (L x l x h): 186 mm x 60 mm x 13 mm
  • Restraining force: 500 kg (1,100 lbs)
  • With integrated LED and NO/NC contact

Technical characteristics:

  • CE standard
  • Power supply: 12VDC/24VDC
  • Consumption: 12DC/420mA – 24VDC = 210mA
