Product
information

Reference

FD-020-047

FD-020-047

Protocols

  • Wiegand

Technologies

  • 125 kHz

Download

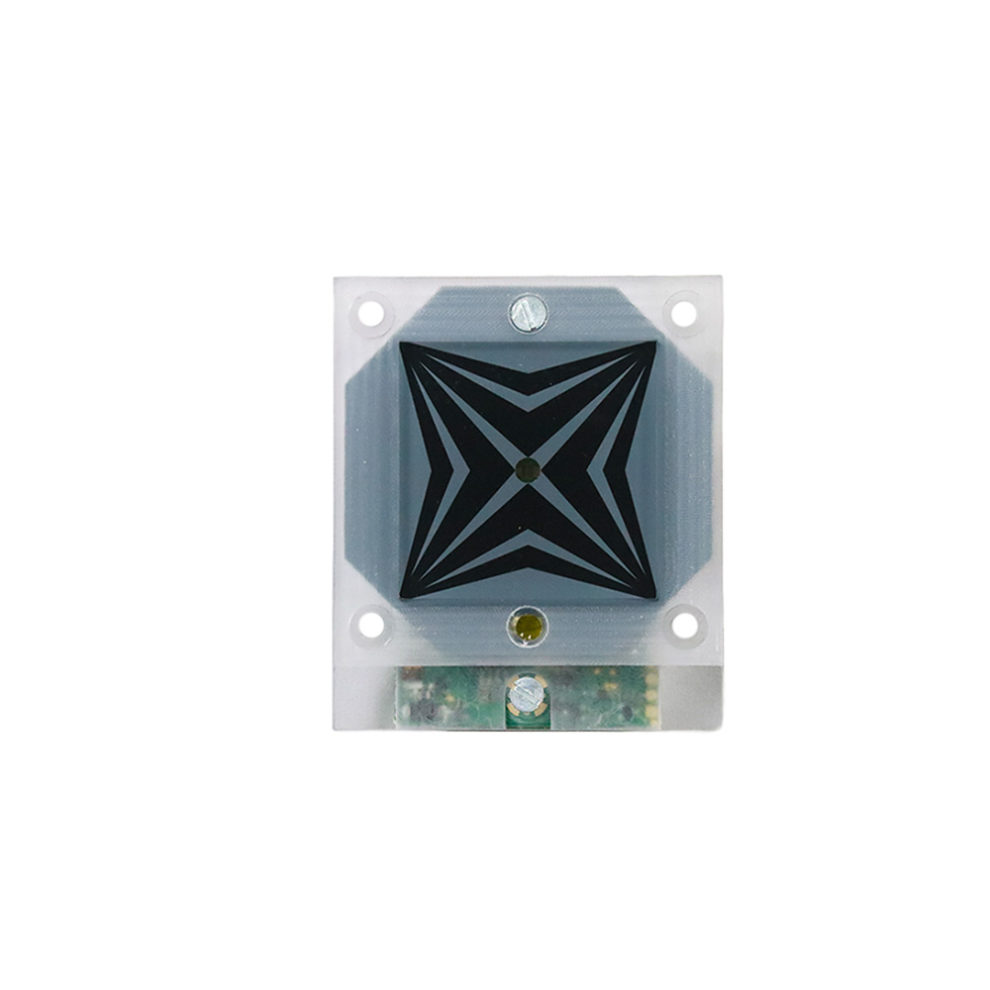

40×40 OEM reader

h

Description

Wiegand is a standard protocol. FDI Wiegand proximity readers are compatible with the majority of access control systems supporting 30-bit. FDI can develop 26-bit, 32-bit, 34-bit and other readers on request.

The FD-020-047 OEM proximity reader is a 30-bit reader.

Technical characteristics

Power supply

Operating voltage: 12Vcc

Wiring

Wiring: 5-wire / 100 m max. to the controller

Read distance

  • Mifare® Classic : Up to 40 mm

Size

  • Size (L x l x H) : 60 mm x 60 mm x 16 mm
