Description
Wiegand is a standard protocol. FDI Wiegand proximity readers are compatible with the majority of access control systems supporting 30-bit. FDI can develop 26-bit, 32-bit, 34-bit and other readers on request.

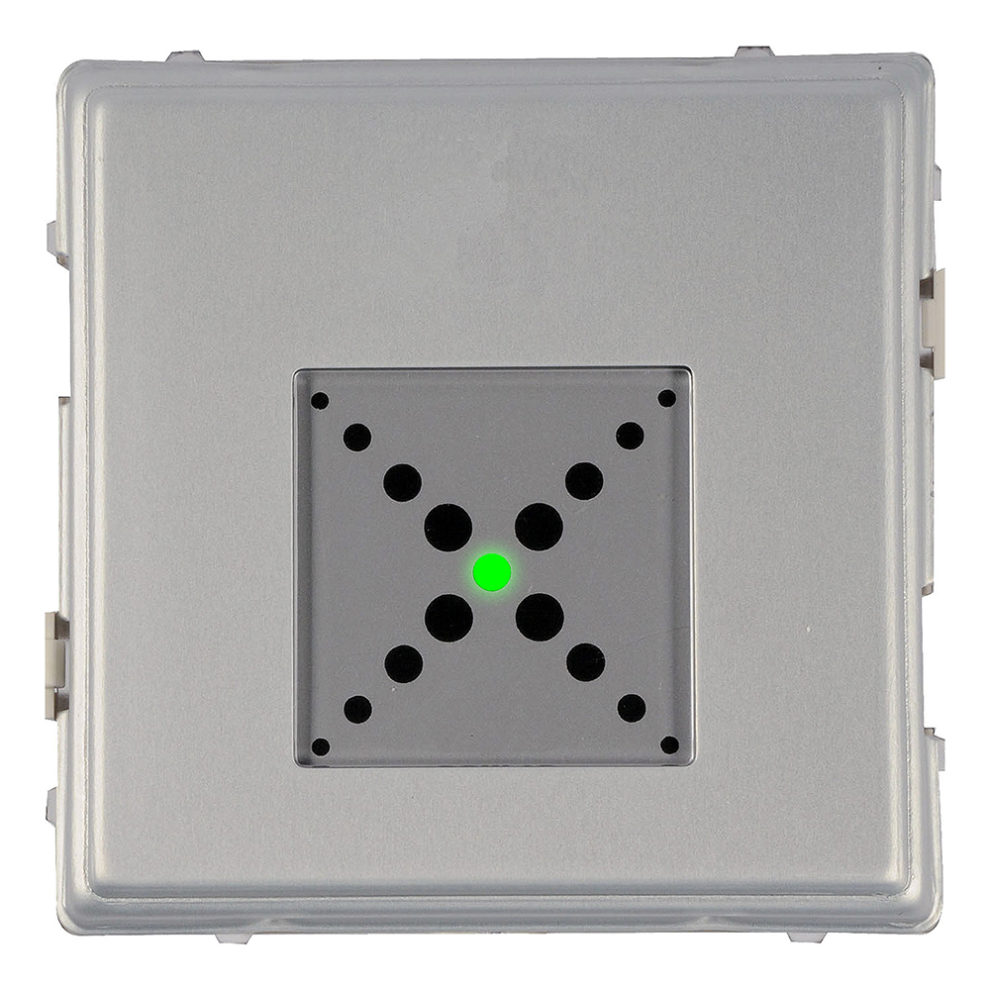

The FD-020-188 Sinthesi Steel proximity reader is a 26-bit reader.
Technical characteristics
Power supply
Operating voltage: 12Vcc
Wiring
- Wiring: 5 wires / 100 metres max.
Read distance
- Mifare® Classic: Up to 40 mm
Size
- Size (L x l x H): 85 mm x 85 mm x 16 mm
