Product
information

Reference

FD-500-499

FD-500-499

Download

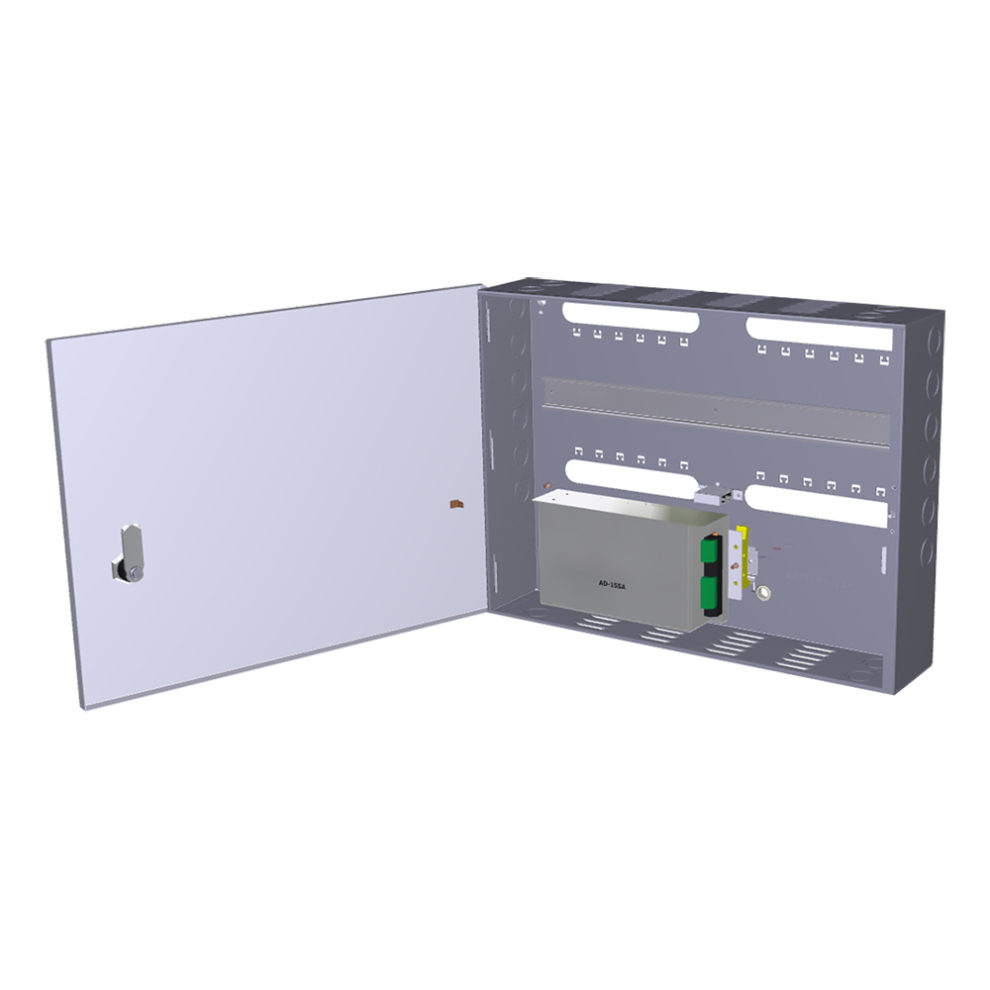

2-module metal enclosure

DESCRIPTION

The metal enclosure is designed to make iPassan installation easier. It provides easy access to the equipment for servicing purposes and reduces on-site time as part of the cabling may be prepared in advance.

The small model hosts 2 iPassan modules and offers flexibility when installing (2 controllers or 2 input/output modules or 1+1).

Key characteristics

  • Size: 456 mm x 342 mm x 100 mm
  • Weight: 5.4 kg
  • Power supply: 13.8VDC 3.5A. Backup supply possible
  • Paint: RAL 9003 white
  • Cable entries: 6 pre-drilled holes on each side + 4 on top and bottom.
  • Protection rating: IP 50
  • Tampering and opening detection: Switch in door and on the back of the enclosure
